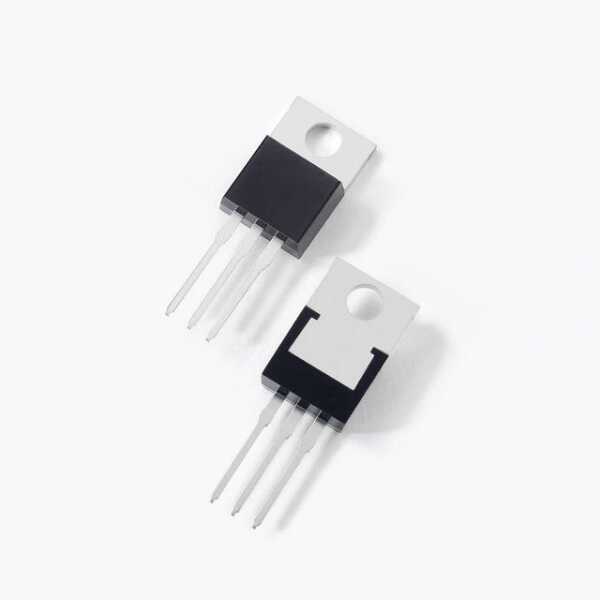

2SC1514 TO-220 0.1A 300V 1.2W NPN Transistor

2SC1514 TO-220 0.1A 300V 1.2W NPN Transistor

2SC1514 TO-220 0.1A 300V 1.2W NPN Transistor Description

The 2SC1514 in a TO-220 package is a robust NPN transistor designed for high-voltage applications, delivering up to 0.1A of current at 300V with a power dissipation of 1.2W. Ideal for professionals seeking reliable performance in power supply circuits and amplifier designs, this transistor excels in both commercial and industrial settings.

2SC1514 TO-220 0.1A 300V 1.2W NPN Transistor Features

• Collector-Emitter Voltage (V_CEO): 300V
• Collector Current (I_C): 0.1A
• Power Dissipation (P_D): 1.2W
• Package Type: TO-220
• Transition Frequency (f_T): [Frequency Value]
• Gain Bandwidth Product: [Bandwidth Value]
• Operating Temperature Range: [Temperature Range]

2SC1514 TO-220 0.1A 300V 1.2W NPN Transistor Applications

• Power Amplifiers: Used in audio amplification systems for clear signal transmission.
• Switching Circuits: Ideal for high-voltage switching applications in power supplies.
• Voltage Regulation: Employed in voltage regulation circuits to maintain stable output voltage levels.
