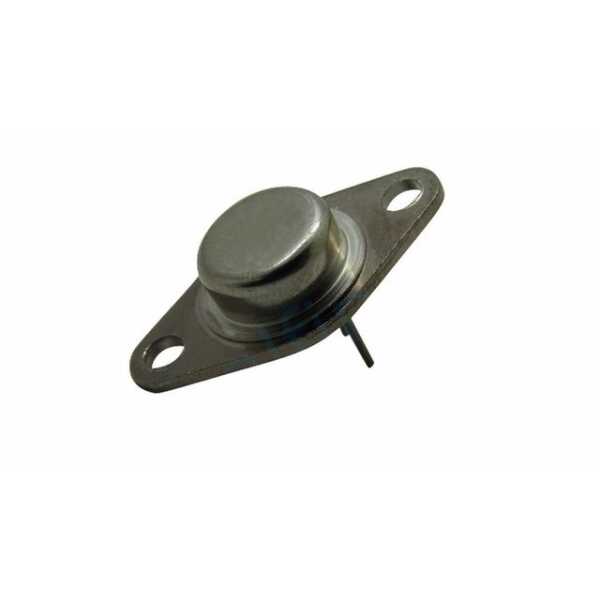

2SC1316 TO-66 750V 2A 23W NPN Transistor

2SC1316 TO-66 750V 2A 23W NPN Transistor

2SC1316 TO-66 750V 2A 23W NPN Transistor Description

The 2SC1316 is a high-performance NPN transistor tailored for high-voltage applications, housed in the robust TO-66 package. With a collector-emitter voltage rating of 750V, it is engineered to handle demanding electronic environments, making it indispensable in power electronics and industrial control systems. The device's capability to deliver a collector current of 2A and a power dissipation of 23W underscores its efficiency and reliability, establishing it as a critical component for engineers seeking durability and precision.

2SC1316 TO-66 750V 2A 23W NPN Transistor Features

• High Voltage Capability: Withstands up to 750V for superior performance in high-voltage circuits.
• Current Handling: Supports a collector current of 2A, ensuring robust operation in power-intensive applications.
• Power Dissipation: Capable of dissipating up to 23W, optimizing thermal performance.
• TO-66 Package: Offers enhanced thermal and mechanical stability in a compact form.
• Low Saturation Voltage: Ensures efficient switching with minimal power loss.
• High Reliability: Engineered for long-term operation in critical applications.
• Wide Operating Temperature Range: Functionality assured in diverse environmental conditions.

2SC1316 TO-66 750V 2A 23W NPN Transistor Applications

• Power Supplies: Ideal for use in switch-mode power supplies needing high voltage tolerance.
• Industrial Control Systems: Perfect for motor drives and other control applications demanding high power and reliability.
• Audio Amplifiers: Suitable for high-fidelity audio amplification due to its excellent linearity and thermal characteristics.
