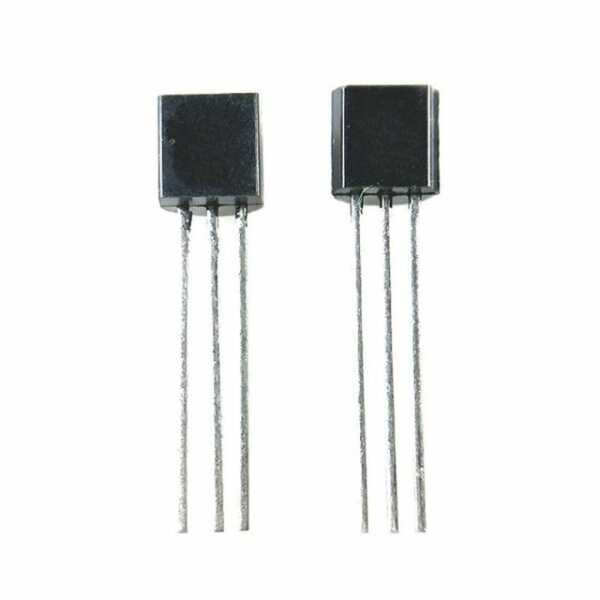

2SB810 TO-92 0.7A 30V 0.35W PNP Transistor

2SB810 TO-92 0.7A 30V 0.35W PNP Transistor

2SB810 TO-92 0.7A 30V 0.35W PNP Transistor Description

2SB810 TO-92 0.7A 30V 0.35W PNP Transistör is a versatile and reliable component designed to meet the demands of modern electronic circuitry. With its compact TO-92 package, this PNP transistor is ideal for applications where space is limited but performance cannot be compromised. Its robust design and reliable electrical characteristics make it an essential component in power amplification and switching applications across various industries, including consumer electronics, automotive, and industrial automation.

2SB810 TO-92 0.7A 30V 0.35W PNP Transistor Features

• Collector Current (Ic): 0.7A ensures effective current drive capability for medium power applications.
• Collector-Emitter Voltage (Vce): Rated at 30V for robust performance in diverse circuits.
• Power Dissipation (Pd): A maximum of 0.35W allows for efficient thermal management.
• Package Type: TO-92 offers a compact and easy-to-mount solution for PCB applications.
• Gain Bandwidth Product: High-frequency response suitable for audio and RF applications.
• Operating Temperature Range: Wide range allows for use in varied environmental conditions.
• Transition Frequency (ft): Provides reliable high-speed switching capabilities.

2SB810 TO-92 0.7A 30V 0.35W PNP Transistor Applications

• Audio Amplifiers: Ideal for low to medium power audio amplification circuits.
• Switching Circuits: Efficiently used in switching applications, including relay drivers and LED drivers.
• Voltage Regulation: Essential for linear voltage regulation in power supply circuits.
