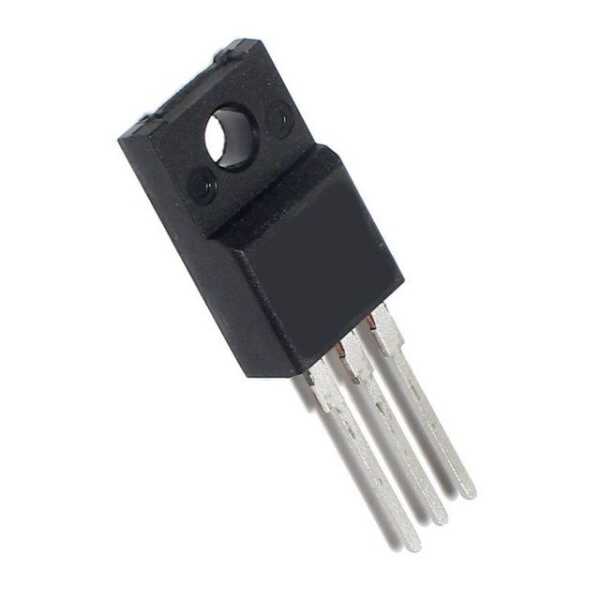

2SB1566E TO-220F 3A 60V 25W PNP Transistor

2SB1566E TO-220F 3A 60V 25W PNP Transistor

2SB1566E TO-220F 3A 60V 25W PNP Transistor Description

2SB1566E TO-220F 3A 60V 25W PNP Transistor is a high-performance, reliable power transistor designed for professionals in the electronics industry. With its robust TO-220F package, this PNP transistor offers excellent thermal efficiency and is ideal for applications requiring a balance between power and efficiency. It is a preferred choice in circuits where 3A current, up to 60V voltage, and 25W power dissipation are critical parameters.

2SB1566E TO-220F 3A 60V 25W PNP Transistor Features

• High Current Capacity: Supports up to 3A of current, making it suitable for a variety of power applications.
• Voltage Handling: Capable of withstanding up to 60V, ensuring reliability in diverse operating conditions.
• Power Dissipation: Efficiently dissipates power up to 25W, reducing thermal strain on components.
• TO-220F Package: Offers superior heat dissipation with an insulated design, protecting against thermal overload.
• Low Collector-Emitter Saturation Voltage: Minimizes power loss, enhancing overall circuit efficiency.
• High Gain Characteristics: Provides reliable operation with consistent performance metrics.
• Durable Construction: Engineered for long-lasting performance in demanding environments.

2SB1566E TO-220F 3A 60V 25W PNP Transistor Applications

• Audio Amplifiers: Utilized in audio amplification systems for its ability to handle high current and power levels.
• Switching Circuits: Ideal for use in switching applications due to its reliable switching characteristics and thermal efficiency.
• Power Supply Units: Employed in power supply circuits where consistent power delivery and voltage handling are crucial.
