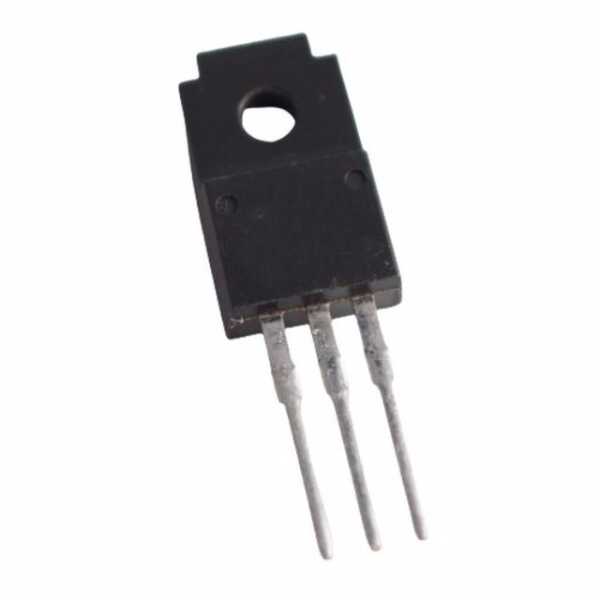

2SA1307 TO-220FA 5A 50V 20W PNP Transistor

2SA1307 TO-220FA 5A 50V 20W PNP Transistor

2SA1307 TO-220FA 5A 50V 20W PNP Transistor Description

2SA1307 TO-220FA 5A 50V 20W PNP Transistor is a high-performance, general-purpose transistor ideal for amplification and switching applications. With its robust design and reliable performance, this transistor is a preferred choice in demanding electronic circuits across various industries.

2SA1307 TO-220FA 5A 50V 20W PNP Transistor Features

• Collector Current (Ic): Capable of handling up to 5A current, making it suitable for high-current applications.
• Collector-Emitter Voltage (Vce): Withstands up to 50V, ensuring durability in high-voltage environments.
• Power Dissipation (Pd): Rated at 20W, providing effective heat management and reliability.
• Package Type: Encased in a TO-220FA package, offering excellent thermal performance and easy mounting.
• Transition Frequency (fT): High frequency response suitable for RF and high-speed applications.
• High Gain: Offers substantial current amplification, enhancing performance in signal amplification circuits.
• Low Saturation Voltage: Ensures efficient operation with minimal power loss.

2SA1307 TO-220FA 5A 50V 20W PNP Transistor Applications

• Audio Amplifiers: Utilized in high-fidelity audio systems for clear and powerful sound amplification.
• Switching Power Supplies: Integral in power supply circuits for efficient energy conversion and regulation.
• Motor Control: Employed in DC motor control circuits, facilitating precise speed and torque management.
