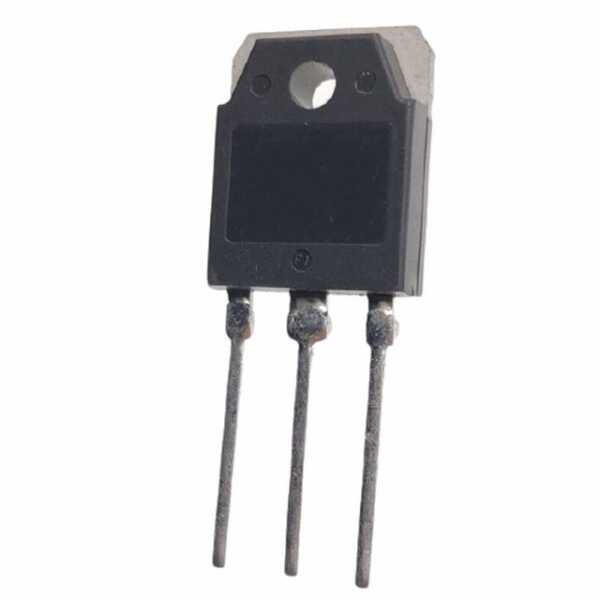

2SA1303 TO-3P 14A 150V 125W PNP Transistor

2SA1303 TO-3P 14A 150V 125W PNP Transistor

2SA1303 TO-3P 14A 150V 125W PNP Transistor Description

2SA1303 TO-3P 14A 150V 125W PNP Transistor is a high-performance transistor designed for demanding electronic applications. With its robust build and impressive specifications, this transistor is an essential component in the realms of power amplification and switching. Its relevance in the electronics industry is underscored by its capability to handle high power and voltage, making it a preferred choice for professionals seeking reliability and efficiency.

2SA1303 TO-3P 14A 150V 125W PNP Transistor Features

• Package Type: The transistor is housed in a TO-3P package, ensuring excellent thermal performance and mechanical stability.
• Collector Current: Capable of supporting a high collector current of 14A, this component is suitable for heavy-duty applications.
• Voltage Rating: With a collector-emitter voltage of 150V, it can handle substantial electrical loads.
• Power Dissipation: Boasts a maximum power dissipation of 125W, making it ideal for high-power circuits.
• Gain Bandwidth Product: [Value]
• Operating Temperature Range: [Value]
• HFE: [Value]

2SA1303 TO-3P 14A 150V 125W PNP Transistor Applications

• Audio Amplification: Utilized in audio amplifier circuits for its ability to handle high power outputs and maintain signal integrity.
• Switching Power Supplies: Employed in power supply circuits where efficient energy conversion and control are crucial.
• Industrial Motor Controls: Integral in controlling industrial motor systems, particularly where high reliability and performance are required.
