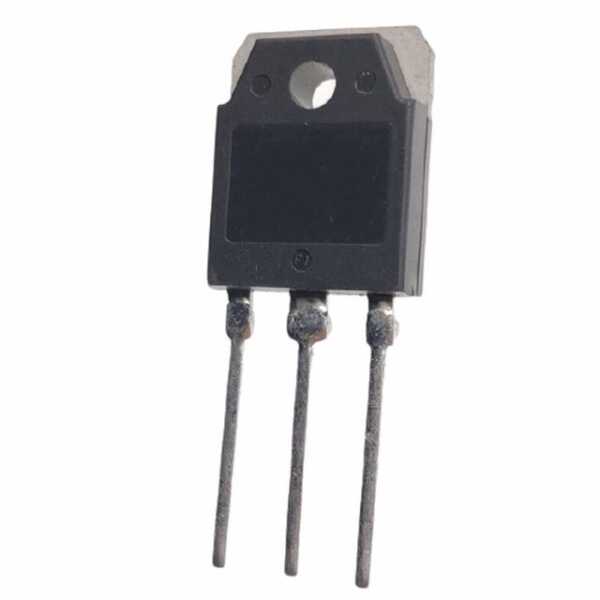

2SA1105 TO-3P 9A 120V 90W PNP Transistor

2SA1105 TO-3P 9A 120V 90W PNP Transistor

2SA1105 TO-3P 9A 120V 90W PNP Transistor Description

2SA1105 TO-3P 9A 120V 90W PNP Transistor is a power-packed semiconductor device designed for high-performance applications in various electronic circuits. Its robust construction in a TO-3P package allows it to handle high power loads efficiently, making it a preferred choice for engineers looking to implement reliable and sustainable circuit designs. With a current capacity of 9A, a voltage rating of 120V, and a power dissipation of 90W, this transistor is indispensable in modern electronic solutions.

2SA1105 TO-3P 9A 120V 90W PNP Transistor Features

• High Current Capacity: Capable of handling up to 9A, allowing for efficient power management in demanding applications.
• High Voltage Rating: Operates safely at up to 120V, suitable for high-voltage applications.
• Power Dissipation: Rated at 90W, ensuring optimal performance without overheating.
• TO-3P Package: Provides enhanced thermal performance and mechanical stability.
• Low Saturation Voltage: Ensures minimal power loss, improving overall circuit efficiency.
• High Reliability: Designed to withstand harsh operating conditions for long-term durability.
• Wide Operating Temperature Range: Suitable for diverse environmental conditions, from commercial to industrial applications.

2SA1105 TO-3P 9A 120V 90W PNP Transistor Applications

• Power Amplifiers: Ideal for use in audio and RF power amplifiers where high output is necessary.
• Switching Regulators: Provides efficient switching in voltage regulation circuits, enhancing power supply reliability.
• Motor Control Circuits: Ensures robust control of motors in industrial and consumer electronics.
