2N3904 - (MMBT3904LT1G, 1AM) SOT-23 0.2A 60V 0.225W NPN Transistor Description

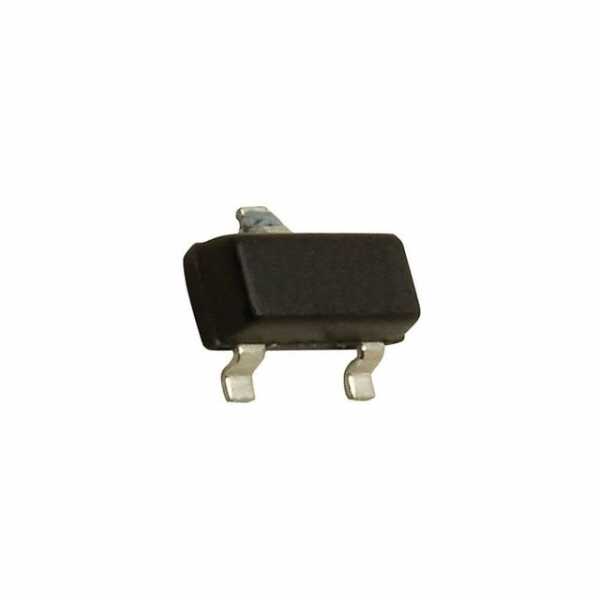

2N3904 - (MMBT3904LT1G 1AM) SOT-23 0.2A 60V 0.225W NPN Transistör is a highly reliable and versatile NPN transistor, ideal for low-power switching and amplification tasks. Recognized for its compact size and efficiency, this component is widely utilized in various electronic circuits, making it an essential choice for engineers seeking both performance and space-saving solutions.

2N3904 - (MMBT3904LT1G, 1AM) SOT-23 0.2A 60V 0.225W NPN Transistor Features

• High Current Gain: Ensures efficient amplification with a typical hFE range of 100 to 300.
• Low Collector-Emitter Saturation Voltage: Reduces power loss and heat generation, enhancing device longevity.
• Maximum Collector Current: Supports up to 0.2A, making it suitable for moderate load applications.
• High Collector-Emitter Voltage: Rated at 60V, allowing usage in higher voltage circuits.
• Package Type: Comes in a compact SOT-23 package, optimizing board layout for space-constrained designs.
• Power Dissipation: Handles up to 0.225W, supporting efficient energy management in circuits.
• High Switching Speed: Facilitates rapid operation, crucial for high-frequency applications.

2N3904 - (MMBT3904LT1G, 1AM) SOT-23 0.2A 60V 0.225W NPN Transistor Applications

• Signal Amplification: Ideal for amplifying audio, RF, and other small signals in diverse electronic devices.
• Switching Circuits: Frequently used in low-power switching applications in consumer electronics.
• Oscillator Circuits: Essential in the design of oscillator circuits for generating precise frequency signals.
