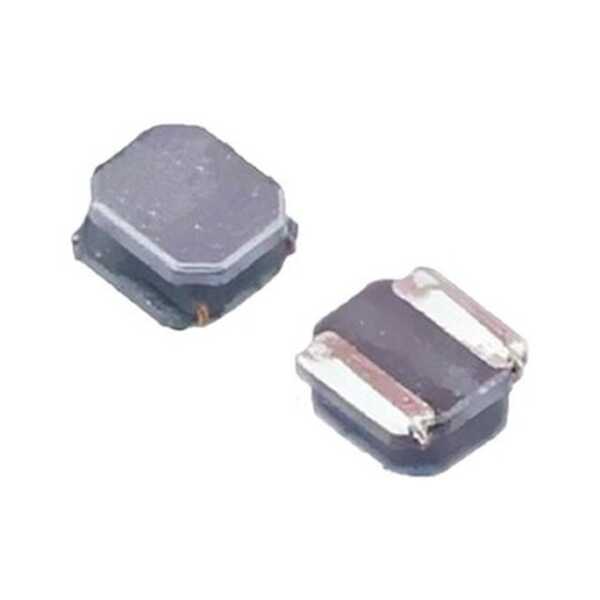

NR8040 33UH SMD Coil

NR8040 33UH SMD Coil

NR8040 33UH SMD Coil Description

NR8040 33UH SMD Coil is a top-tier electronic component designed to meet the demands of modern electronic devices. Engineered for efficiency and reliability, this compact SMD coil is perfect for applications requiring high performance and minimal space utilization. The NR8040 is a surface-mount device that offers a 33UH inductance value, ensuring it performs optimally with minimal energy loss and high frequency stability. Whether you're designing power supplies, DC-DC converters, or RF circuits, this coil provides the performance edge you need.

NR8040 33UH SMD Coil Features

• Inductance: 33μH ±20%
• DC Resistance: 0.15Ω max
• Rated Current: 2.5A
• Operating Temperature: -40°C to +125°C
• Dimensions: 8.0mm x 8.0mm
• High Frequency Performance: Optimized for minimal energy loss
• Mounting Style: Surface-Mount Device (SMD)

NR8040 33UH SMD Coil Applications

• DC-DC Converters: Used in voltage regulation and power management circuits for efficient power conversion.
• Power Supplies: Integral component in stabilizing outputs and reducing electromagnetic interference.
• RF Circuits: Enhances signal integrity and frequency stability in radio frequency applications.
