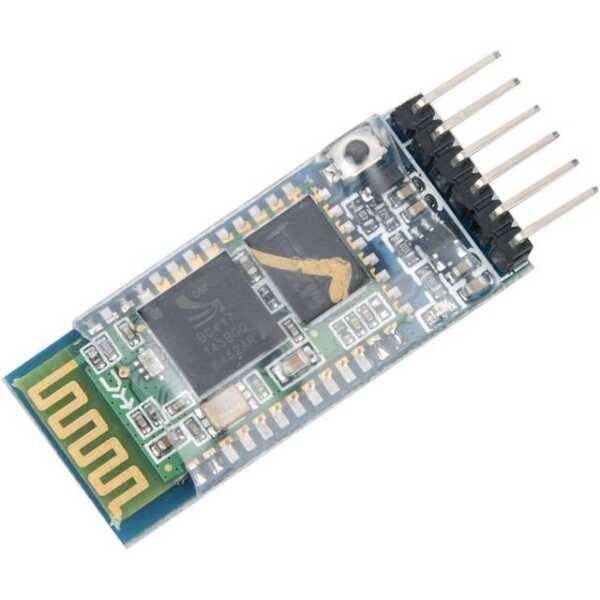

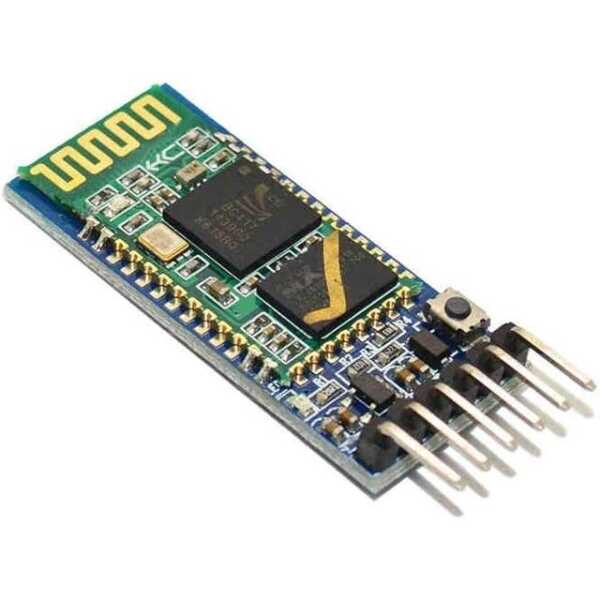

The HC-05 6 Pin Bluetooth Module is a versatile wireless communication module that supports both Master and Slave modes. This version, equipped with a button for easy access to AT command mode, is built with a reliable China Chip, ensuring stable and efficient performance. It is widely used in IoT, robotics, and other embedded systems to enable seamless Bluetooth connectivity.
- Master and Slave Modes: Configurable for both roles using AT commands.
- Integrated Button: Allows easy access to AT command mode for quick configuration.
- 6 Pin Interface: Includes TX, RX, VCC, GND, EN (enable), and STATE (connection status) pins.
- China Chip: Provides cost-effective and stable Bluetooth performance.
- Wide Compatibility: Works seamlessly with Arduino, Raspberry Pi, and STM32 microcontrollers.
- Stable Connectivity: Offers reliable communication over a range of up to 10 meters.
- Compact and Durable Design: Lightweight and easy to integrate into various projects.
HC-05 6 Pin Bluetooth Module Specifications
- Bluetooth Version: Bluetooth 2.0 + EDR
- Operating Voltage: 3.3V - 6V
- Communication Interface: UART (default baud rate: 9600)
- Operating Range: Up to 10 meters (in open space)
- Modes: Master and Slave
- Pin Configuration: TX, RX, VCC, GND, EN, STATE
- Button Function: Switch to AT command mode for configuration
- Dimensions: Compact and lightweight
HC-05 6 Pin Bluetooth Module Applications
- IoT Systems: Adds Bluetooth connectivity to smart home devices and automation systems.
- Wireless Communication: Enables data transfer between microcontrollers and other Bluetooth-enabled devices.
- Robotics: Facilitates remote control and telemetry for robotic systems.
- Embedded Projects: Integrates easily into various embedded systems for wireless communication.
- Educational Projects: Perfect for learning and prototyping Bluetooth-enabled systems.
