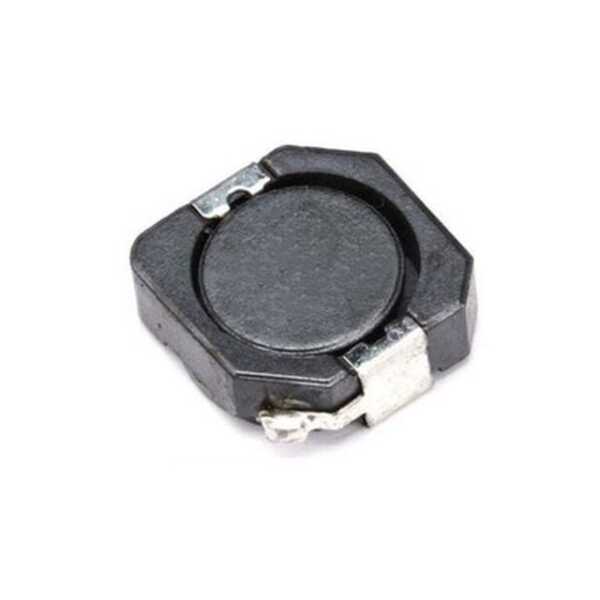

CDRH105 22UH SMD Coil

CDRH105 22UH SMD Coil

CDRH105 22UH SMD Coil Description

CDRH105 22UH SMD Coil is an essential component for modern electronics, delivering superior performance and reliability. Ideal for a variety of applications, this Coil is designed with precision to meet the demands of high-frequency circuits. Its compact SMD form factor makes it perfect for space-constrained environments, while its 22UH inductance value ensures optimal energy storage and filtering. Whether you're working on power supplies, DC-DC converters, or RF circuits, the CDRH105 offers exceptional efficiency and durability.

CDRH105 22UH SMD Coil Features

• Inductance: 22UH ± 20%
• DC Resistance: 0.15Ω Max
• Rated Current: 3.0A
• Operating Temperature Range: -40°C to +125°C
• Package Type: SMD
• Magnetic Shielding: Yes, for minimal EMI
• Footprint: Compact design for easy PCB integration

CDRH105 22UH SMD Coil Applications

• Power Supply Modules: Enhances efficiency in DC-DC converters and voltage regulators.
• Telecommunications: Supports RF circuits for better signal integrity.
• Consumer Electronics: Ideal for compact devices like smartphones and tablets requiring efficient power management.
