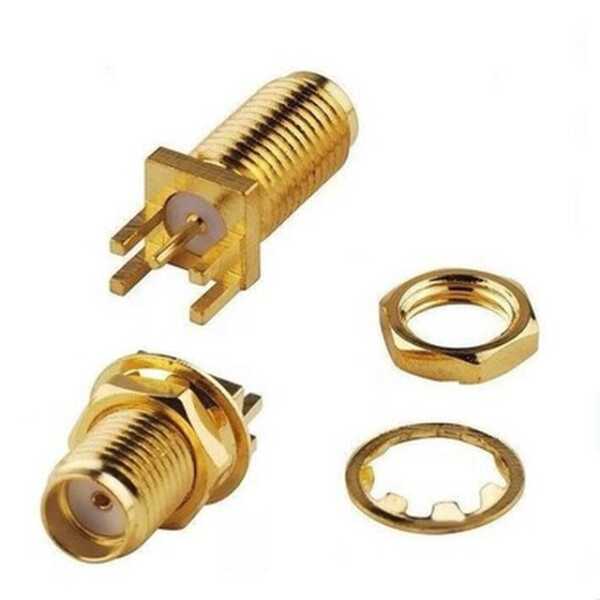

SMA-KE 11 Coaxial Connector

SMA-KE 11 Coaxial Connector

SMA-KE 11 Coaxial Connector Description

SMA-KE 11 Coaxial Connector is your go-to solution for seamless connectivity in high-frequency applications. Designed with precision, this SMA-KE Connector offers exceptional performance and reliability. It is specifically engineered to support a wide range of RF and microwave applications, ensuring minimal signal loss and superior durability. Whether you are working with complex communication systems or intricate electronic setups, the SMA-KE 11 Coaxial Connector stands out as a top choice for professionals seeking efficiency and quality.

SMA-KE 11 Coaxial Connector Features

• Frequency Range: DC to 18 GHz
• Impedance: 50 Ohms
• Contact Material: Gold-plated brass
• Dielectric Material: PTFE
• Operating Temperature: -55°C to +155°C
• VSWR: 1.15:1 Max
• Durability: 500 Cycles

SMA-KE 11 Coaxial Connector Applications

• Telecommunications: Ideal for use in mobile and base station antennas.
• Military and Aerospace: Suitable for radar and satellite communication systems.
• Test and Measurement: Perfect for RF testing equipment and calibration setups.
