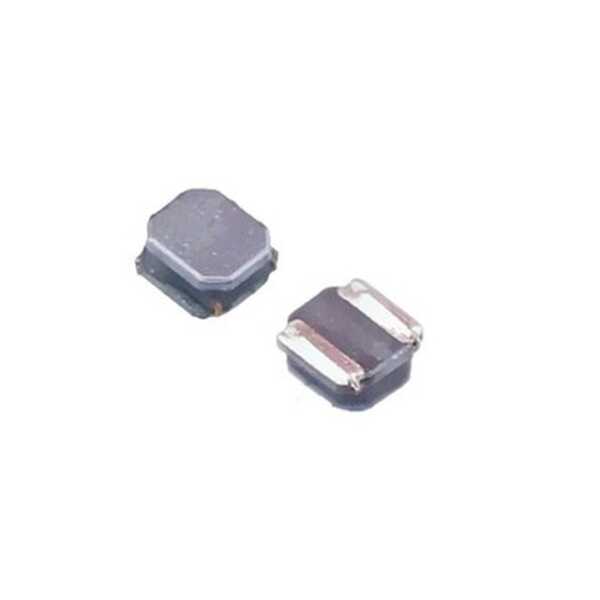

NR3015 100UH SMD Coil

NR3015 100UH SMD Coil

NR3015 100UH SMD Coil Description

The NR3015 100UH SMD Coil is a high-performance component designed to meet the demanding needs of modern electronic circuits. This compact and efficient coil is perfect for applications requiring stable inductance with minimal footprint. Its surface-mount design ensures easy integration into circuit boards, enabling seamless assembly and high-density layouts. Whether you are working on a power supply, filter, or RF application, the NR3015 provides superior performance with its low DC resistance and high saturation current capacity.

NR3015 100UH SMD Coil Features

• Inductance: 100UH
• DC Resistance: 0.2Ω max
• Saturation Current: 1.2A max
• Operating Temperature: -40°C to +125°C
• Dimensions: 3.0mm x 3.0mm x 1.5mm
• Shielded Construction: Yes
• Mounting Type: Surface Mount Device (SMD)

NR3015 100UH SMD Coil Applications

• Power Supply Modules: Ensures stable voltage regulation in compact power supply designs.
• RF Circuits: Optimizes signal integrity and performance in radio frequency applications.
• Filtering Applications: Provides excellent noise suppression in filtering circuits for cleaner signals.
