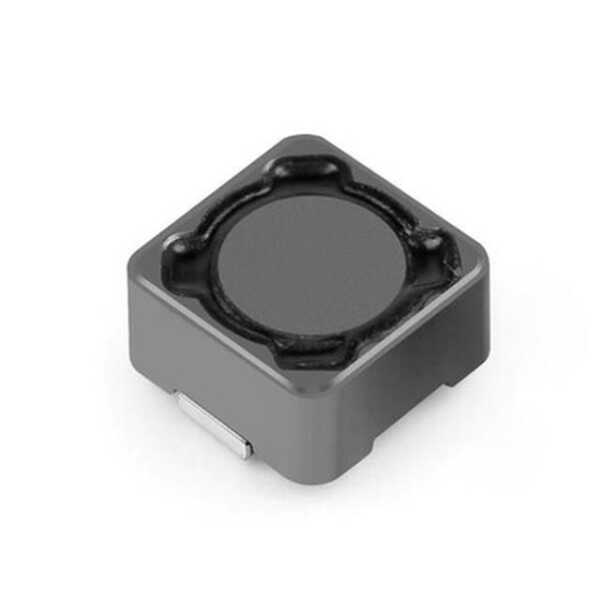

CDRH129 22UH SMD Coil

CDRH129 22UH SMD Coil

CDRH129 22UH SMD Coil Description

CDRH129 22UH SMD Coil is a high-performance inductor designed to meet the needs of modern electronics. This compact and efficient component is ideal for a variety of applications, offering excellent performance in terms of inductance and current handling with minimal power loss. Engineered to deliver stable inductance values, the CDRH129 is perfect for power supply circuits, DC-DC converters, and other electronic devices that require reliable inductive components. Its surface-mount design ensures easy integration into printed circuit boards, making it a preferred choice for both manufacturers and engineers who prioritize efficiency and space-saving solutions.

CDRH129 22UH SMD Coil Features

• Inductance: 22µH
• Rated Current: 2.0A
• DC Resistance: 0.045Ω
• Operating Temperature Range: -40°C to +125°C
• Dimensions: 12.5mm x 12.5mm
• Mounting Type: Surface-mount (SMD)
• Shielding: Magnetically shielded

CDRH129 22UH SMD Coil Applications

• Power Supply Circuits: Used in switch mode power supplies for filtering and stabilization.
• DC-DC Converters: Integral in voltage regulation applications for boosting or bucking voltage levels.
• Consumer Electronics: Deployed in devices such as smartphones and tablets to ensure efficient power management.
