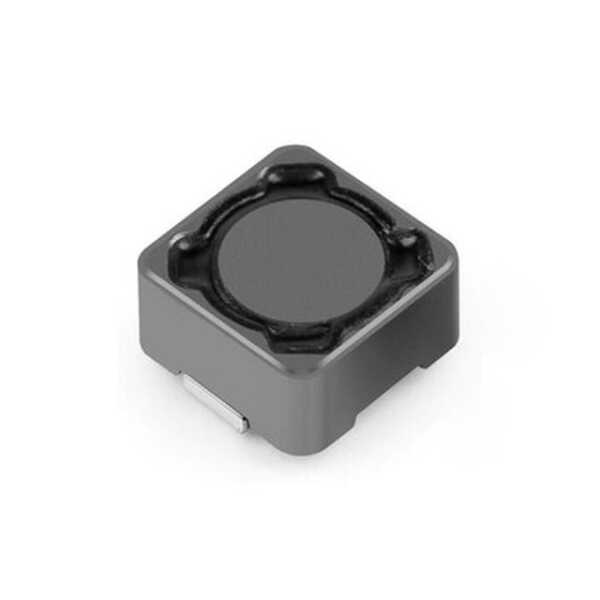

CDRH124 22UH SMD Coil

CDRH124 22UH SMD Coil

CDRH124 22UH SMD Coil Description

CDRH124 22UH SMD Coil is a high-performance, surface-mount inductor designed for efficiency in compact electronic circuits. Its robust construction ensures durability and reliability, making it an essential component for modern electronic devices. The CDRH124 22UH SMD Coil is engineered to provide stable inductance values with low DCR, ensuring optimal power conversion and filtering. Ideal for applications requiring high current handling and minimal electromagnetic interference, this Coil is perfect for use in DC-DC converters, power supplies, and more.

CDRH124 22UH SMD Coil Features

• Inductance: 22µH ±20%
• DC Resistance (DCR): 0.1 Ohm Max
• Rated Current: 1.0A
• Package Size: 12.5mm x 12.5mm
• Height: 4.5mm
• Operating Temperature Range: -40°C to +125°C
• Shielding: Shielded construction to reduce EMI

CDRH124 22UH SMD Coil Applications

• Power Supplies: Enhances efficiency in switch-mode power supplies by minimizing power loss.
• DC-DC Converters: Provides stable inductance for efficient voltage conversion in portable devices.
• Telecommunication Equipment: Ensures reliable performance in high-frequency applications, reducing signal interference.
