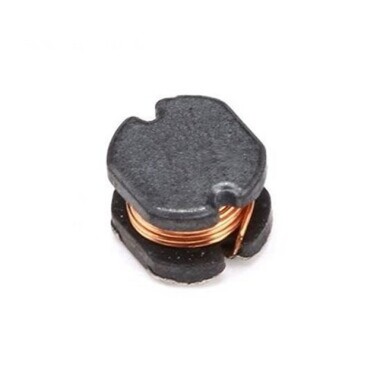

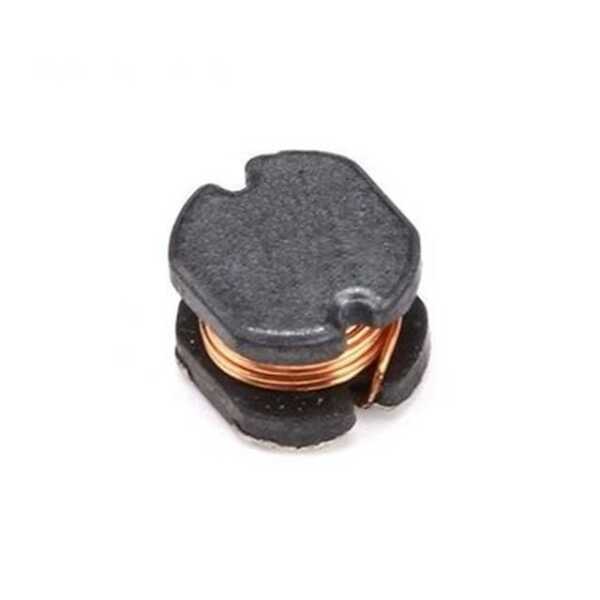

CD75 1UH SMD Coil

CD75 1UH SMD Coil

CD75 1UH SMD Coil Description

CD75 1UH SMD Coil is a high-performance surface-mount device designed to meet the demanding requirements of modern electronic applications. With its compact design and superior electrical characteristics, this coil is ideal for engineers and designers looking to optimize their circuits with efficiency and reliability. Featuring a low profile and robust construction, the CD75 1UH SMD Coil offers excellent inductance stability, making it a crucial component for power supply modules, RF circuits, and signal processing applications. Its precise engineering ensures minimal energy loss and high-frequency performance, making it a staple in innovative technological designs.

CD75 1UH SMD Coil Features

• Inductance: 1 µH ± 20%
• DC Current Rating: Up to 2.5 A
• DC Resistance: 0.02 Ω
• Operating Temperature Range: -40°C to +125°C
• Frequency Range: Up to 5 MHz
• Dimensions: 7.5 mm x 7.5 mm x 5 mm
• Mounting Type: Surface Mount Device (SMD)

CD75 1UH SMD Coil Applications

• Power Supply Modules: Enhances power efficiency in voltage regulation circuits.
• RF Circuits: Ideal for filtering and signal conditioning in wireless communication devices.
• Signal Processing: Used in audio and video equipment for noise suppression and signal integrity.
