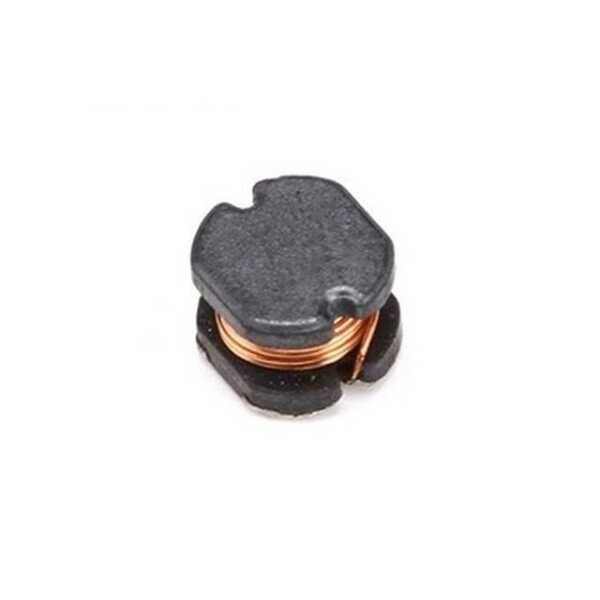

CD43 680UH SMD Coil

CD43 680UH SMD Coil

CD43 680UH SMD Coil Description

CD43 680UH SMD Coil is a robust and compact electronic component designed to optimize performance in high-frequency circuits and minimal space environments. This SMD coil is ideal for a variety of applications ranging from power supplies to RF circuits, offering exceptional inductance and efficiency. With its precise 680UH inductance value, the CD43 coil ensures stable and reliable energy storage, making it an essential component for modern electronic designs. Its surface-mount technology (SMD) facilitates easy integration into compact circuit boards, enhancing design flexibility and reducing manufacturing time.

CD43 680UH SMD Coil Features

• Inductance: 680UH ±10% tolerance
• DC Resistance: Low resistance for high efficiency
• Operating Temperature Range: -40°C to +125°C
• Maximum Current: Rated up to 1.2A
• Shielding: Ferrite core for reduced EMI interference
• Package Type: Surface Mount Device (SMD) for easy PCB integration
• Size: Compact dimensions of 4.5mm x 4.0mm

CD43 680UH SMD Coil Applications

• Power Supplies: Used in DC-DC converters and voltage regulators for efficient energy conversion.
• RF Circuits: Essential for impedance matching and filtering in high-frequency applications.
• Telecommunication Devices: Integral in signal processing and frequency modulation systems.
