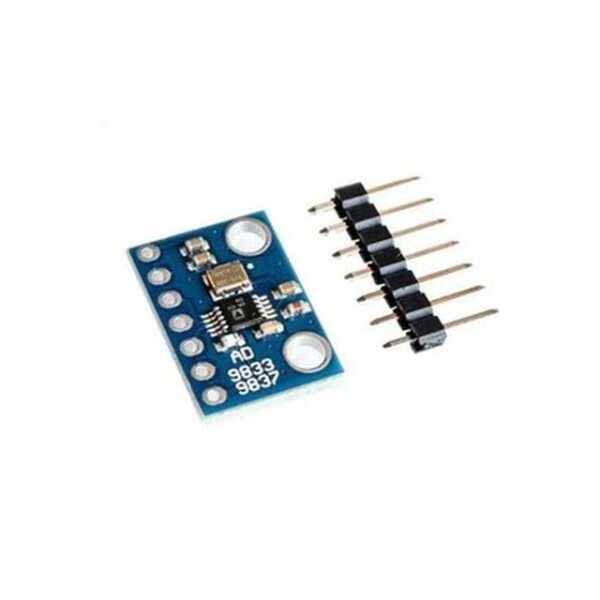

AD9833 Programmable Sine Square Wave DDS Signal Generator Module

AD9833 Programmable Sine Square Wave DDS Signal Generator Module

AD9833 Programmable Sine Square Wave DDS Signal Generator Module Description

AD9833 Programmable Sine Square Wave DDS Signal Generator Module is a compact and efficient solution for generating precise waveform signals essential for a myriad of electronic applications. Whether you are a hobbyist or a professional engineer, this module offers unparalleled versatility with its capability to produce Sine, Square, and triangular Wave outputs. With the AD9833 at its core, this module provides a Programmable solution for generating frequencies up to 12.5 MHz, making it ideal for signal modulation, sensor emulation, and much more. Its easy integration with microcontrollers and minimal power consumption make it a preferred choice for both embedded applications and standalone projects.

AD9833 Programmable Sine Square Wave DDS Signal Generator Module Features

• Waveform Outputs: Sine, Square, and Triangle
• Frequency Range: Up to 12.5 MHz
• Interface: SPI Compatible
• Supply Voltage: 2.3 V to 5.5 V
• Power Consumption: Low Power
• Package: Compact 10-lead MSOP and 10-lead LFCSP
• Temperature Range: -40°C to +85°C

AD9833 Programmable Sine Square Wave DDS Signal Generator Module Applications

• Signal Modulation: Essential for amplitude and frequency modulation projects
• Sensor Simulation: Ideal for emulating sensor outputs in testing environments
• Waveform Generation: Perfect for generating Sine and Square Waveforms in educational labs
