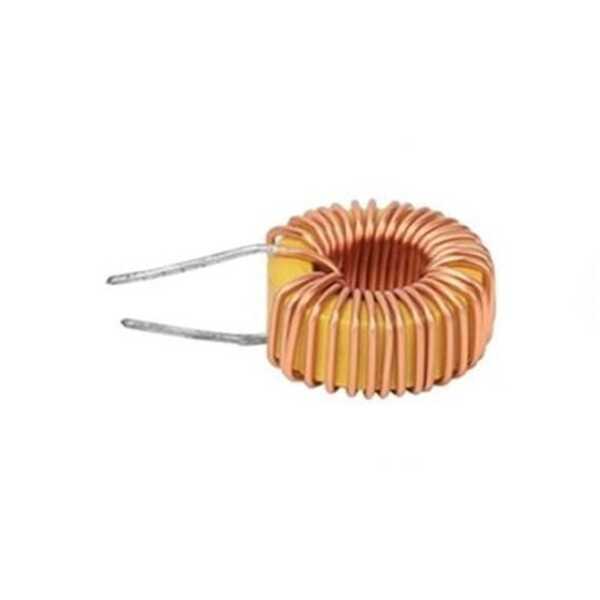

5026 68UH Choke Coil Description

The 5026 68UH Choke Coil is an essential component designed with precision and reliability for all your electronic circuit needs. Whether you are building a new circuit board or enhancing an existing design, this Coil offers excellent performance in limiting alternating current while allowing direct current to pass through, ensuring efficient energy management and minimal signal interference.

Crafted with high-quality materials, the 5026 68UH Choke Coil is built to withstand rigorous usage and deliver superior inductance stability across various applications. Its compact design and robust construction make it an ideal choice for both high-frequency and low-frequency circuits.

5026 68UH Choke Coil Features

• Inductance: 68μH ±10%
• DC Resistance: 0.12 Ohms
• Rated Current: 2.5A
• Operating Temperature Range: -40°C to +125°C
• Self-Resonant Frequency: 10 MHz
• Quality Factor (Q): 55 at 2.52 MHz
• Core Material: Ferrite

5026 68UH Choke Coil Applications

• Noise Filtering: Ideal for reducing electromagnetic interference in power supply circuits.
• Signal Processing: Enhances signal integrity in communication devices by mitigating unwanted noise.
• Energy Storage: Efficient energy storage and release in DC-DC converters.
