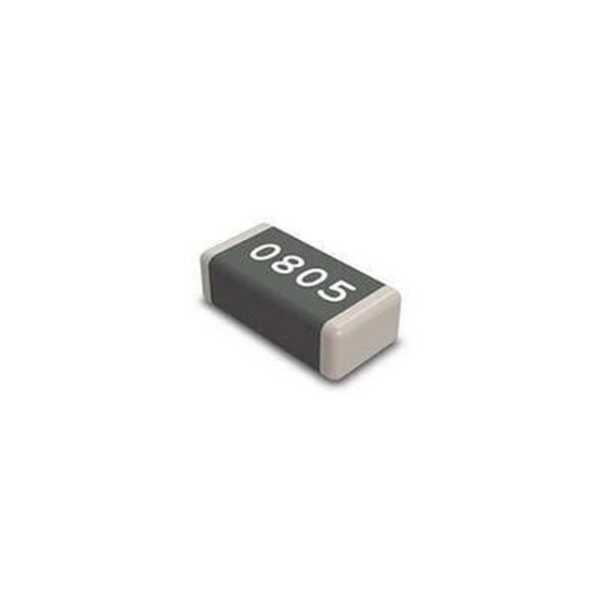

4.7uH 805 Sleeve SMD Coil

4.7uH 805 Sleeve SMD Coil

4.7uH 805 Sleeve SMD Coil Description

4.7uH 805 Sleeve SMD Coil is a high-performance electronic component designed to meet the demanding needs of modern circuitry. Featuring a compact 805 package, this Coil is perfect for space-constrained applications while delivering reliable performance. The Sleeve design ensures stability and efficiency, making it an ideal choice for high-frequency circuits. With a precise 4.7uH inductance, it plays a crucial role in filtering, signal conditioning, and energy storage applications. Its robust SMD construction allows for easy surface mounting, facilitating automated assembly and reducing overall manufacturing costs.

4.7uH 805 Sleeve SMD Coil Features

• Inductance: 4.7uH ± 20%
• Package Size: 805 (2.0mm x 1.25mm)
• Maximum Current Rating: 300mA
• DC Resistance: 0.10 Ohms
• Operating Temperature Range: -40°C to +125°C
• Shielding: Magnetic Sleeve
• Mounting Type: Surface Mount Device (SMD)

4.7uH 805 Sleeve SMD Coil Applications

• Power Supply Modules: Used in DC-DC converters for efficient power regulation and reduced electromagnetic interference.
• Telecommunication Equipment: Essential for filtering and signal integrity in RF circuits and base stations.
• Consumer Electronics: Integral in smartphones, tablets, and wearable devices for compact and reliable power management.
