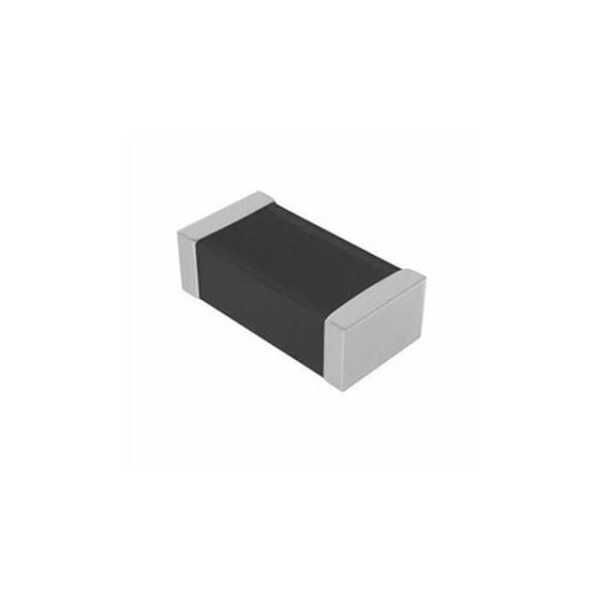

3.3nH 603 Sleeve SMD Coil

3.3nH 603 Sleeve SMD Coil

3.3nH 603 Sleeve SMD Coil Description

3.3nH 603 Sleeve SMD Coil is a compact and efficient surface-mount device designed to enhance the performance of your electronic circuits. This tiny yet powerful component plays a crucial role in various applications, offering precision inductance and reliable performance in high-frequency scenarios. Its 603 package size ensures easy integration into circuit boards, while the Sleeve construction provides added durability and stability. The SMD format allows for automated assembly, making it perfect for modern electronic manufacturing processes. Whether you're designing RF circuits, filters, or impedance matching networks, this Coil delivers the precision and quality you need.

3.3nH 603 Sleeve SMD Coil Features

• Inductance: 3.3nH ± 0.3nH
• Package Size: 0603 (1.6mm × 0.8mm)
• DC Resistance: 0.05 Ω max
• Current Rating: 300mA
• Q Factor: 45 at 100MHz
• Operating Temperature Range: -40°C to +125°C
• Construction: Sleeve design for enhanced mechanical strength

3.3nH 603 Sleeve SMD Coil Applications

• RF Circuits: Ideal for tuning and impedance matching in radio frequency applications
• Signal Filtering: Effective in designing low-pass, high-pass, and band-pass filters
• Impedance Matching Networks: Ensures optimal power transfer in communication devices
