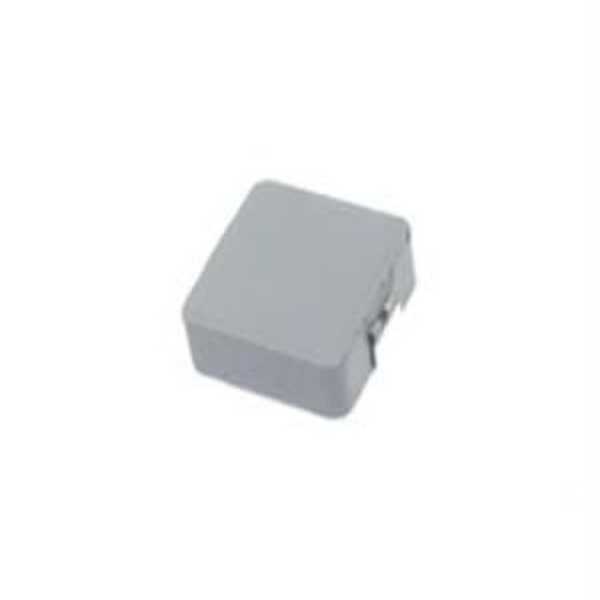

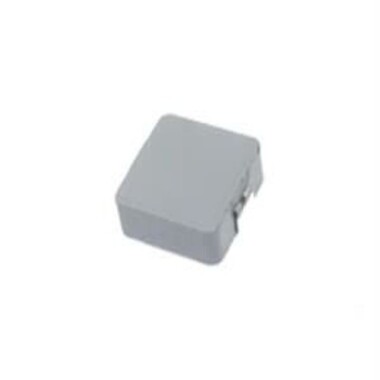

0630 1.5uH SMD Coil

0630 1.5uH SMD Coil

0630 1.5uH SMD Coil Description

0630 1.5uH SMD Coil is a high-performance surface-mount device designed to meet the rigorous demands of modern electronic applications. This compact Coil offers a precise 1.5uH inductance, making it ideal for integrated circuits and power management systems requiring stable and reliable electromagnetic interference (EMI) suppression. With its small footprint and robust construction, the SMD Coil enhances circuit efficiency while minimizing heat dissipation and power loss. Perfect for high-density PCB layouts, the 0630 Coil provides an optimal balance of performance with ease of integration.

0630 1.5uH SMD Coil Features

• Inductance: 1.5uH ±20%
• DC Resistance: 0.03 Ohms max
• Current Rating: 3A
• Operating Temperature: -40°C to +125°C
• Package Size: 0630 (1.6mm x 3.0mm)
• Q Factor: 20 minimum at 10MHz
• Shielding: Unshielded

0630 1.5uH SMD Coil Applications

• Power Supply Modules: Enhances efficiency in DC-DC converters and voltage regulators.
• RF Applications: Ideal for RF circuits requiring precise inductance values for tuning and filtering.
• Consumer Electronics: Perfect for compact devices like smartphones and tablets needing space-efficient components.
